Test Bench: B&C Speakers DE360-8 1” Exit Pro Sound Compression Driver

August 8 2018, 06:00
This month I examined the new 1” exit pro sound compression driver from Italian OEM manufacturer B&C Speakers', model DE360-8. This compression driver is the latest addition to B&C Speakers’ extensive 18 model ferrite and neodymium motor 1” exit compression drivers (see Photo 1). This particular compression driver is one of several lightweight and compact (the DE360‑8 has a 2.8” overall diameter) neodymium motor compression drivers.

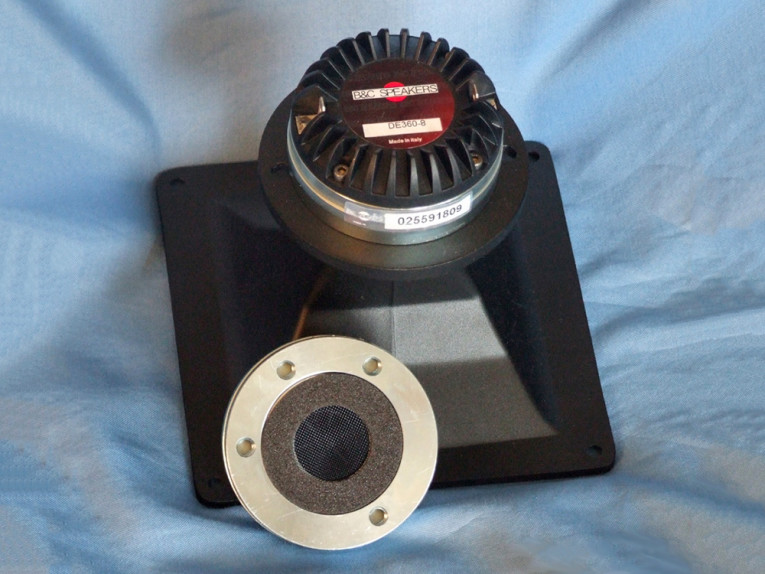

Photo 1: B&C Speakers’ DE360-8 compression driver.

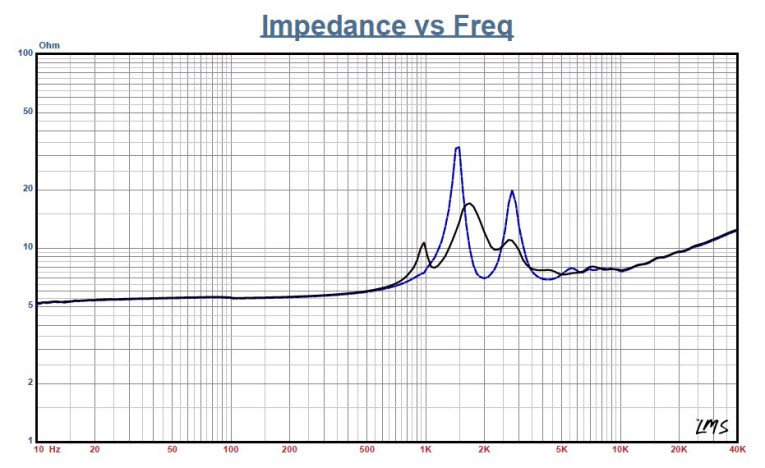

Figure 1: B&C Speakers DE360-8 free-air impedance plot.

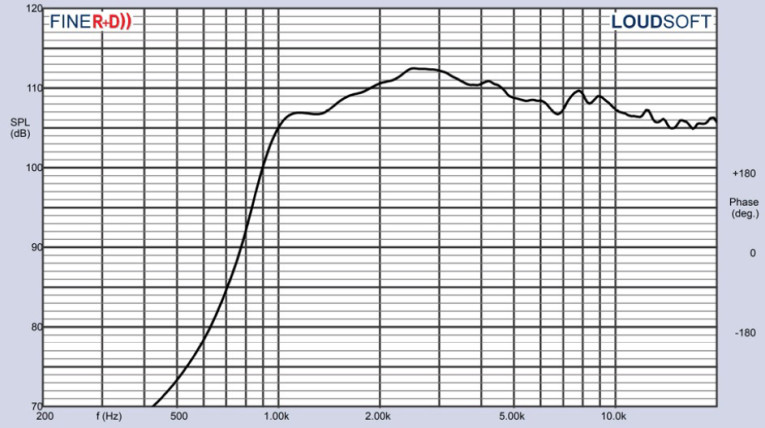

Figure 2: B&C Speakers DE360-8 on-axis frequency response.

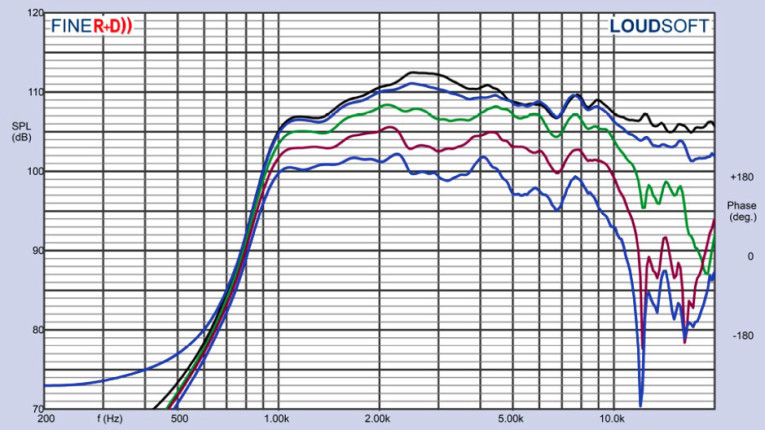

Figure 3: B&C Speakers DE360-8 horizontal on- and off-axis frequency response (0° = solid; 15° = dot; 30° = dash; 45° = dash/dot; 60° = dash).

In terms of features, the B&C Speakers DE360‑8 is designed for use with 1” throat horns, which means it has a 25 mm (1”) throat diameter and a field replaceable HT Polymer diaphragm, driven by a 38 mm (1.5”) diameter voice coil wound with CCAW on a Kapton-type non-conducting former. Other features include a neodymium ring magnet motor, nominal 35 W rated power handling (70 W continuous), a 1.8 kHz recommended crossover frequency (second-order or higher high-pass filter), and 2.83 V/1 m 110 dB sensitivity. B&C Speakers supplied the ME20 horn for use with the DE360-8. This exponential flare horn is a 1” exit bolt-on type made from cast aluminum. The ME20 has a 90° × 60° coverage pattern and a 1.5 kHz cut-off frequency, making it a good match for the DE360-8 compression driver.

To begin testing, I used the LinearX LMS analyzer to produce the 300-point stepped sine wave impedance plot shown in Figure 1. The solid black curve is with the B&C Speakers DE360-8 mounted on the ME20 horn and the dashed blue curve represents the compression driver without the horn. With a 5.65 Ω DCR (Re), the minimum impedance of the DE360/ME20 was 7.31 Ω and at 5.19 kHz.

Next, I free-air mounted the B&C Speakers DE360-8/ME20 combination without an enclosure and measured both the horizontal and vertical on and off axis at 2.83 V/1 m, again using the LOUDSOFT FINE R+D analyzer and the G.R.A.S. 46BE microphone to capture horizontal and vertical plane SPL data from 0° on-axis to 60° off-axis.

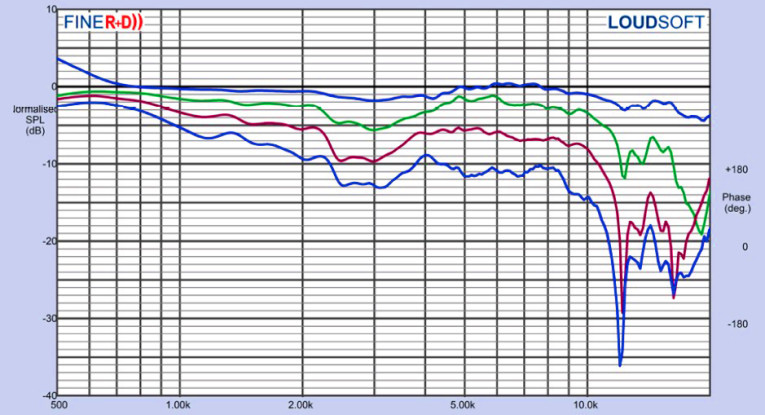

Figure 4: B&C Speakers DE360-8 normalized horizontal on- and off-axis frequency response (0° = solid; 15° = dot; 30° = dash; 45° = dash/dot; 60° = dash).

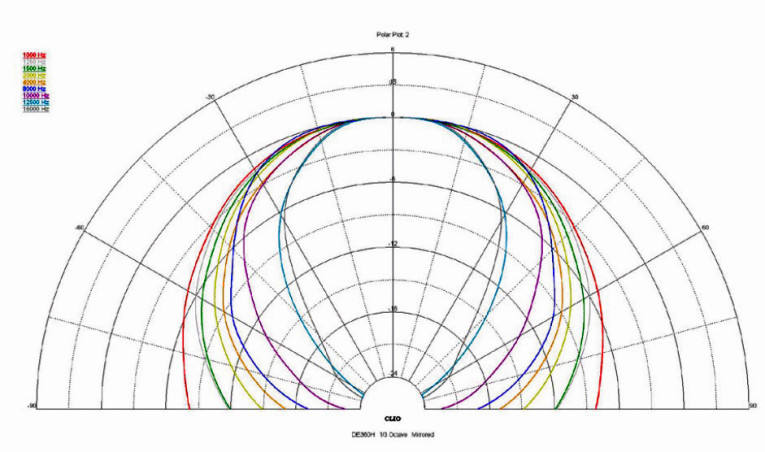

Figure 5: B&C Speakers DE360-8 0° to 180° horizontal plane polar plot (in 10° increments).

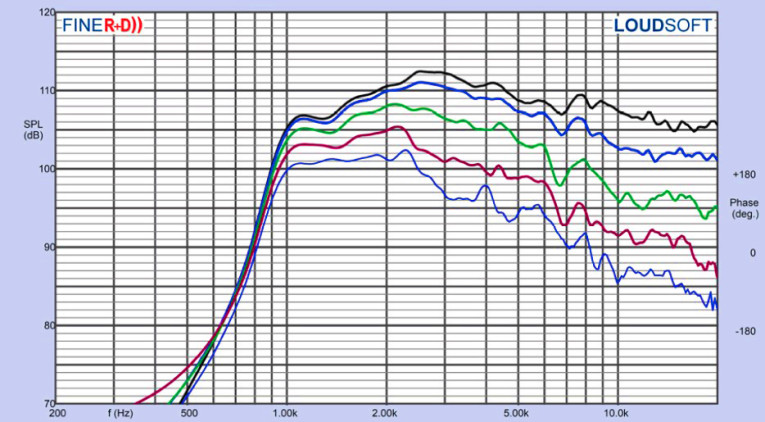

Figure 6: B&C Speakers DE360-8 vertical on- and off-axis frequency response (0° = solid; 15° = dot; 30° = dash; 45° = dash/dot; 60° = dash).

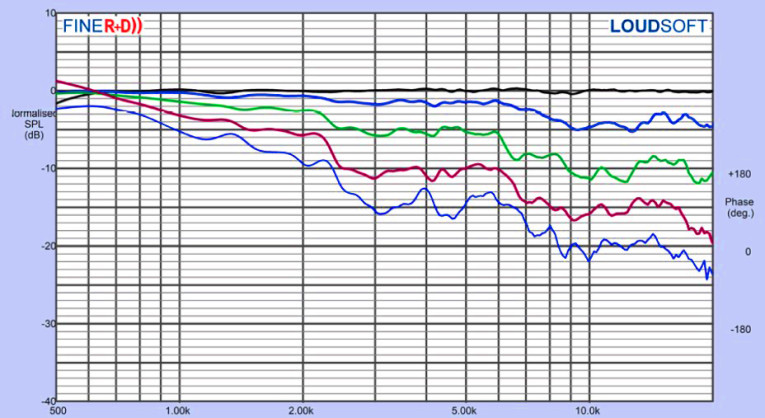

Figure 7: B&C Speakers DE360-8 normalized vertical on- and off-axis frequency response (0° = solid; 15° = dot; 30° = dash; 45° = dash/dot; 60° = dash).

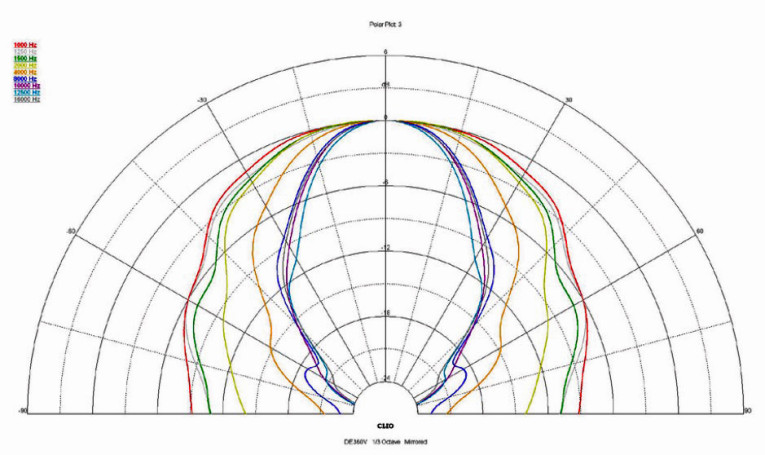

Figure 8: B&C Speakers DE360-8 0° to 180° vertical plane polar plot (in 10° increments).

Figure 2 displays the on-axis frequency response of the compression driver/horn combination, which is smooth with no major anomalies with a declining response as frequency increases above 2.5 kHz, and extending to somewhat beyond 20 kHz. Figure 3 shows the on- and off-axis response in the horizontal plane. Figure 4 displays the normalized horizontal plane response. Figure 5 shows the CLIO Pocket analyzer-generated 180° horizontal polar plot (in 10° increments with 1/3 octave smoothing applied). Figure 6 gives the on and off axis to 60° response in the vertical plane. Figure 7 depicts the normalized vertical plane response. Figure 8 shows the CLIO Pocket generated vertical plane polar plot (in 10° increments with 1/3 octave smoothing applied). Last, Figure 9 illustrates the two-sample SPL comparison showing the two B&C Speakers DE360-8 compression driver samples to be closely matched within less than 1 dB throughout the operating range of the transducer.

For the remaining tests, I again set up the Listen AudioConnect analyze, SoundCheck 16 software, and the Listen 1/4” SCM microphone to measure distortion and generate time-frequency plots. For the distortion measurement, I mounted the DE360-8/ME20 combination in free-air in the same manner as was used for the frequency response measurements, and set the SPL to 104 dB at 1 m (1.49 V determined by using a pink noise stimulus generator and internal SLM in the SoundCheck 16 software). Then, I measured the distortion with the Listen microphone placed 10 cm from the mouth of the horn. This produced the distortion curves shown in Figure 10.

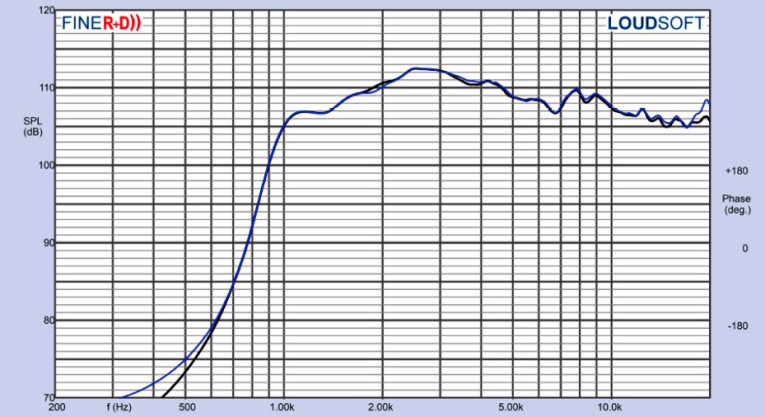

Figure 9: B&C Speakers DE360-8 two-sample SPL comparison.

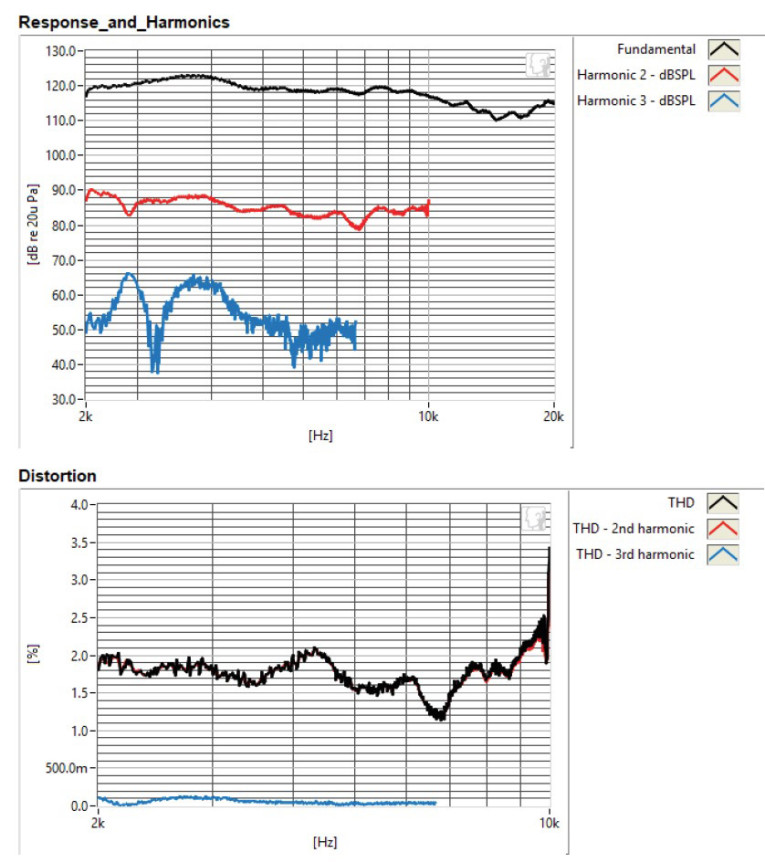

Figure 10: B&C Speakers DE360-8 SoundCheck distortion plots.

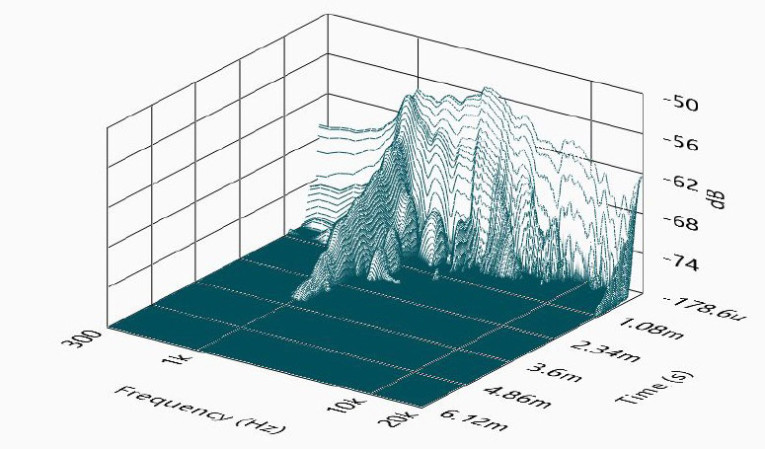

Figure 11: B&C Speakers DE360-8 SoundCheck CSD waterfall plot.
Figure 12: B&C DE360-8 SoundCheck STFT plot.

I set up SoundCheck 16 to generate a 2.83 V/1 m impulse response and imported the data into Listen’s SoundMap Time/Frequency software. Figure 11 shows the resulting CSD waterfall plot. Figure 12 shows the STFT plot.

From the measurements, the DE360-8 provides excellent performance in a small lightweight package, and is a nice addition to B&C Speakers’ extensive lineup of ferrite and neodymium motor compression drivers.

For more information, contact B&C Speakers N.A., National U.S. Sales Office, 220 W. Parkway, Unit 11, Pompton Plains, NJ 07444, by phone at 973-248-0955, by fax at 973-248-0956, e-mail Bennett Prescott, or visit the B&C Speakers website at www.bcspeakers.com. VC

This article was originally published in Voice Coil, May 2018.
