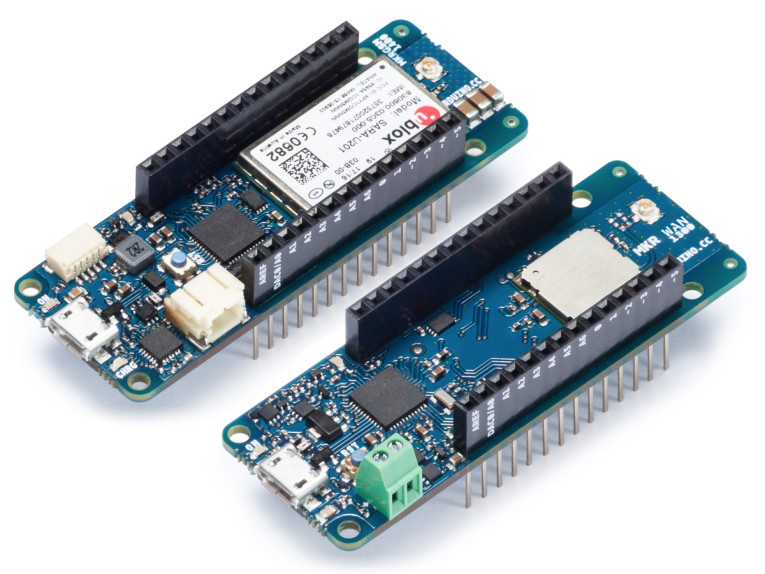

The new Arduino MKR WAN 1300 delivers LoRa low-power WAN connectivity, and the Arduino MKR GSM 1400 adds global 2G/3G communications capability. Both of the highly compact boards feature dimensions of only 67.64 x 25mm, together with low power consumption, making them an ideal choice for emerging battery-powered IoT edge devices in the MKR form factor for applications such as environmental monitoring, tracking, agriculture, energy monitoring and home automation.
The two new boards, which were formally introduced during Arduino co-founder Massimo Banzi’s talk at the Maker Faire in New York, are also available for pre-order via the global online Arduino Store.
Offering 32-bit computational power similar to the Arduino MKR Zero board, the new Arduino MKR WAN 1300 is based around the Murata LoRa low-power connectivity module and the Atmel SAM D21 microcontroller, which integrates the 32-bit low-power ARM Cortex-M0+ processor, 256KB Flash memory and 32KB SRAM. The board’s design includes the ability to be powered via either two 1.5V AA or AAA batteries or an external 5V input via the USB interface – with automatic switching between the two power sources.
As well as low-power LoRa IoT communications capability, the MKR WAN 1300 offers the usual rich set of I/O interfaces expected with an Arduino board, and ease of use via the Arduino IDE software environment for code development and programming. Other features of the board include an operating voltage of 3.3V; eight digital I/Os; 12 PWM outputs; and UART, SPI and I2C interfaces.
Like the MKR WAN 1300, the Arduino MKR GSM 1400 is also based on the ARM Cortex-M0+ based SAM D21, but integrates the u-blox module to deliver global 3G communications ability. The board also features automatic power switching, however, it uses either a 3.7V lithium polymer (LiPo) battery or an external Vin power source delivering 5V to 12V. While the USB port can also be used to supply 5V to the board, the MKR GSM 1400 is able to run with or without the battery connected.
The MKR GSM 1400 also offers a rich set of I/O interfaces including: eight digital I/Os; 12 PWM outputs; UART, SPI and I2C interfaces; analogue I/O including seven inputs and one output; and eight external interrupt pins.
