PMC Impresses at High End 2018 with New fenestria Flagship Loudspeaker

May 14 2018, 03:00
In what is its most significant product launch for the high-end consumer market, at High End 2018, PMC Speakers (The Professional Monitor Company Limited) introduced its new Fact loudspeaker range and launched fenestria, a flagship speaker which also represents a completely new approach from the famous British brand. Detailing every single aspect of the new design, and explaining all its technology innovations, the company impressed visitors and the specialized press at the Munich show.


PMC’s first ever product, the BB5, was installed at the BBC’s Maida Vale studios, London, in the early 1990s and set such high standards for reference monitoring and sonic neutrality that they are still in use over a quarter of a century later. Now, PCM Speakers wants to capitalize on its knowledge, engineering resources and strong reputation in the professional monitor market to conquer also the most demanding audio enthusiasts, creating a completely new high-end speaker series (named Fact), and revealing a flagship model that promises to quickly place the brand on the spotlight: the fenestria.

A three-way, ultra-high-resolution passive twin Advanced Transmission Line (ATL) loudspeaker, fenestria incorporates all-new, tailor-made drivers, twin Laminair vents for improved aerodynamic ATL airflow, plus a newly designed cabinet that houses the treble and mid-range units in an innovative and elegant reflection-free module. The result is at once aesthetically beautiful and highly engineered.

According to PMC, much of fenestria’s five-year design process has focussed on removing the unwanted distortion and coloration introduced by the loudspeaker itself, so that the listener hears nothing but music. For this reason, PMC refer to it as “the loudspeaker you’ll never hear.”

“fenestria is the perfect example of our holistic design approach,” explains Peter Thomas, PMC’s owner and chief designer. “Our aim was to make the best passive loudspeaker we could, with an open mind when it came to technologies and materials. We looked at all options to achieve the purest, most transparent sound, and fenestria was the result.”


This willingness to incorporate innovation from other industries has led to the use of aerodynamic features inspired by motor sports engineering, damping techniques used in skyscraper construction to reduce damage during earthquakes, and new kinds of carbon fibre never previously employed in loudspeakers. “It is pure empirical engineering that pushes the boundaries,” adds Thomas, “plus painstaking listening and tuning to capture the highest level of musicality.”

PMC’s approach to loudspeaker design has been long admired and is the reason why its speakers are the tools of choice for many of the world’s leading recording studios, movie production companies, composers, musicians and engineers. With fenestria, the key design principle has been the elimination from the drive units and cabinets of all unwanted vibrations. These reduce the clarity, precision and neutrality of the speakers, and introduce coloration that detracts from the musical experience. As the loudspeaker evolved, every element – drive units, cabinet, transmission line, crossover – was subjected to vibration analysis using sensitive accelerometers, and the results of this analysis directly influenced the final design.

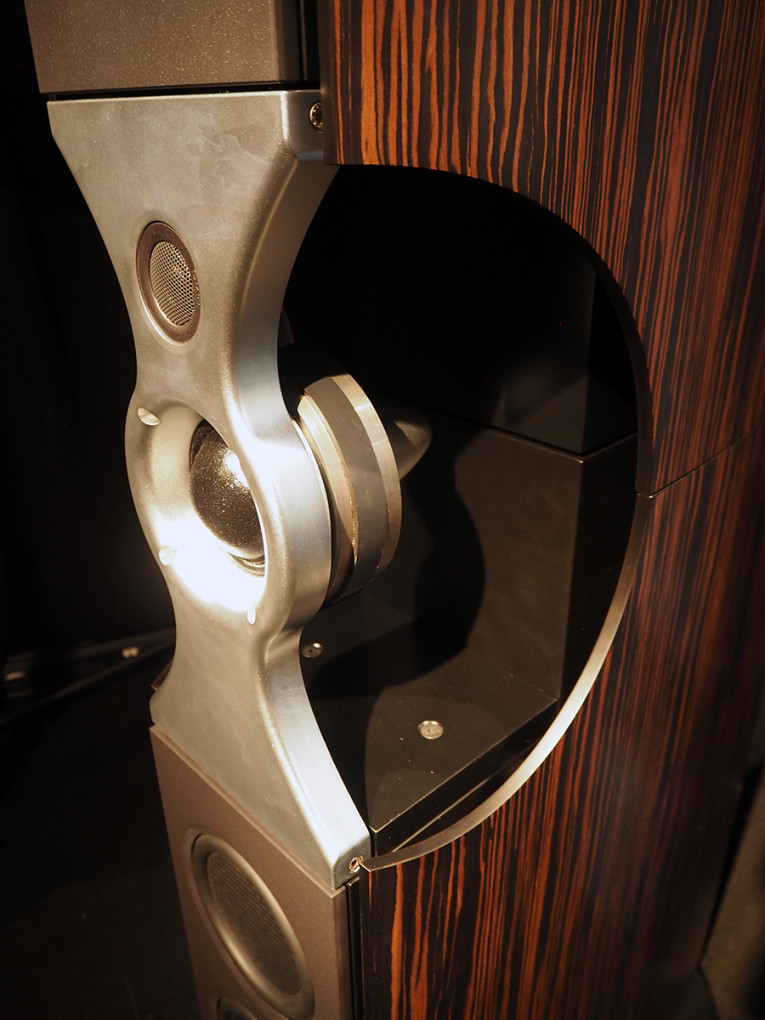

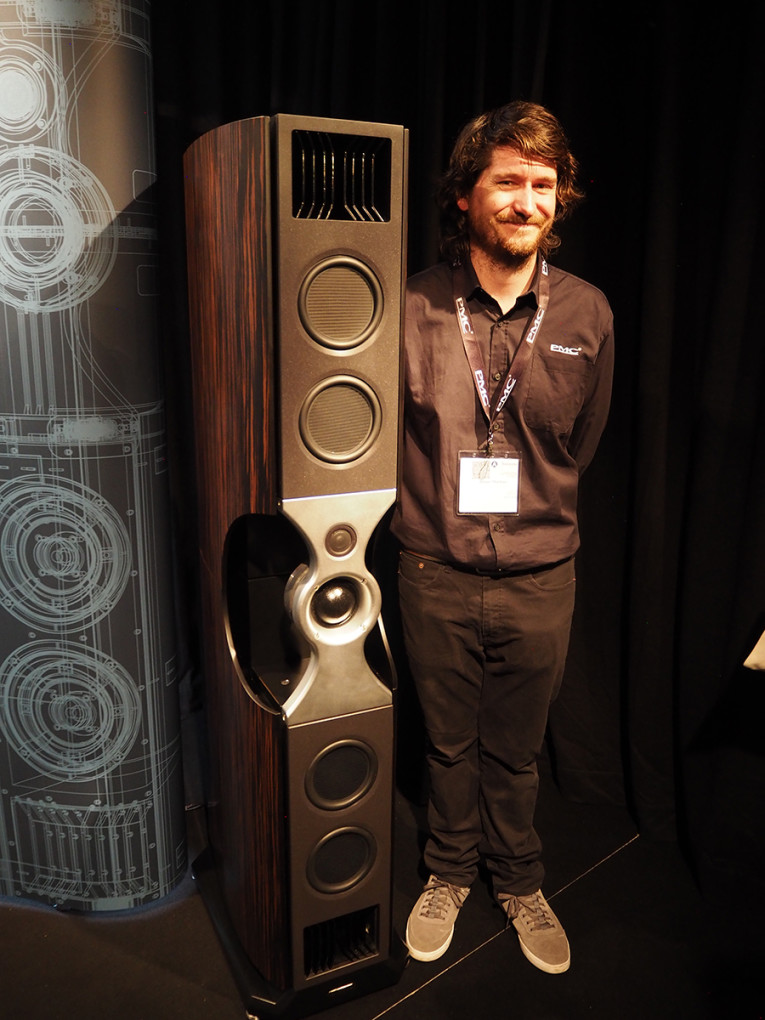

The distinguishing visual marker of this 1.7m tall elegant loudspeaker is the central module or “nest”, housing the high frequency and midrange drive units. Honed from a solid billet of aluminum, the nest is isolated and decoupled from the rest of the cabinet. This prevents the enormous energy of the Advanced Transmission Line and four bass drive units from interfering with the critical information coming from the high and midrange units.

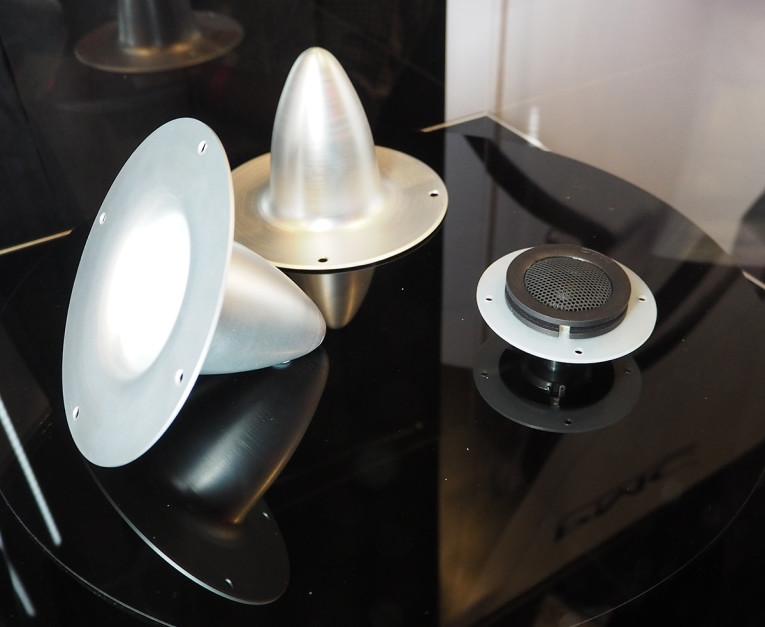

The 19.5mm Sonomex high frequency unit features a neodymium magnet assembly and PMC-designed dispersion grille for natural, open-sounding high frequencies and an extremely stable three-dimensional image. The driver is isolated from the midrange unit and nest with a silicone-damped PMC suspension mount, the Auriole.

PMC’s midrange driver has achieved legendary status in both hi-fi and pro-audio worlds. The 75mm unit in fenestria is wholly new and takes the midrange performance up to another level, even by PMC’s standards. Its spun aluminum form is acoustically inert and produces no unwanted reflections when mounted in the nest. The result is a stable, pin-sharp image that appears to emanate from the space around the speaker, rather than the drive unit itself.


The four 165mm long-throw piston bass drivers each feature a massive magnet assembly and a flat diaphragm comprising two layers of transverse-weave carbon-fibre, hand made by a specialist motor sport manufacturer, sandwiching a rigid multi-cellular damped core. The rigid but ultra-light diaphragm ensures a highly accurate, near-instantaneous response and provides the sheer power required to drive the compact, high-compression transmission line without deformation and consequent colouration.

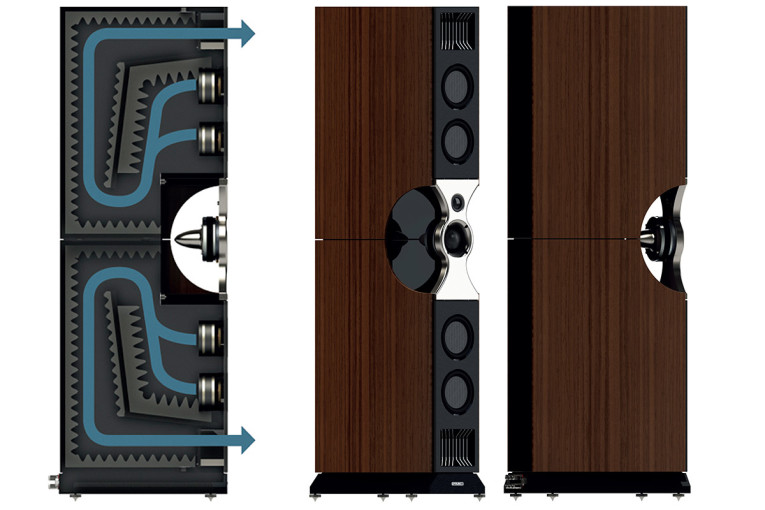

Also shared with the world of auto sport are the Laminair vents situated at the end of the twin Advanced Transmission Lines (ATL), PMC’s proprietary bass-loading technology. Using principles of aerodynamics used from F1 to Le Mans, the Laminair vent creates a smooth, laminar airflow as it exits the ATL. This reduces turbulence and drag, increasing efficiency, eliminating air noise and producing a bass response with exceptional timing, depth and dynamic range at all levels.

Housing the ATL and bass units are the heavily braced cabinets, which are acoustically isolated from the drivers in the nest. Such is the high energy produced by the bass drivers and twin ATLs, a more innovative approach was required to preventing unwanted low-frequency vibrations from passing into the cabinet. Using the same techniques employed in tall buildings to prevent earthquake damage (whereby a high-mass pendulum is added to the structure), the sides of fenestria’s cabinet have been engineered to resonate in opposition to the rest of the loudspeaker assembly. The result is the elimination of vibrations before they leave the cabinet – the side panels cancel out all the unwanted energy produced by the drivers.

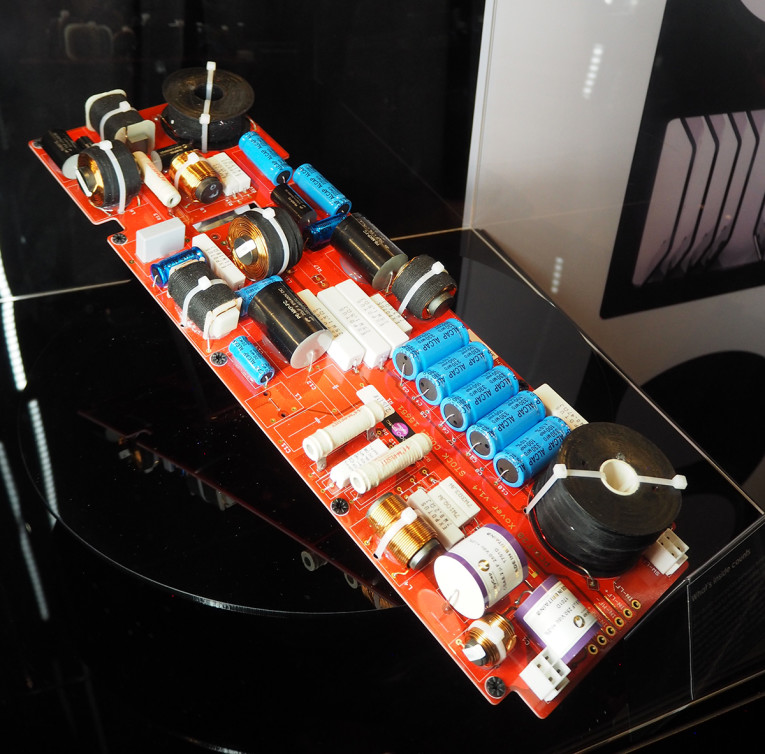

Even the crossover, situated in the speaker’s plinth, is acoustically isolated from the rest of the cabinet. Every crossover component is meticulously tested and listened to before selection, and is strategically positioned to eliminate interference between them. The plinth also houses the high- and low-frequency tuning controls, which ensure ideal integration with all rooms and source equipment.

Available in White silk, Rich walnut, Graphite and Tiger ebony finishes, fenestria retails for approximately 54,000 Euros per pair.
www.pmc-speakers.com
