DiGiCo Reveals SD12 Compact Multi-Application Digital Mixing Console

January 24 2017, 05:00

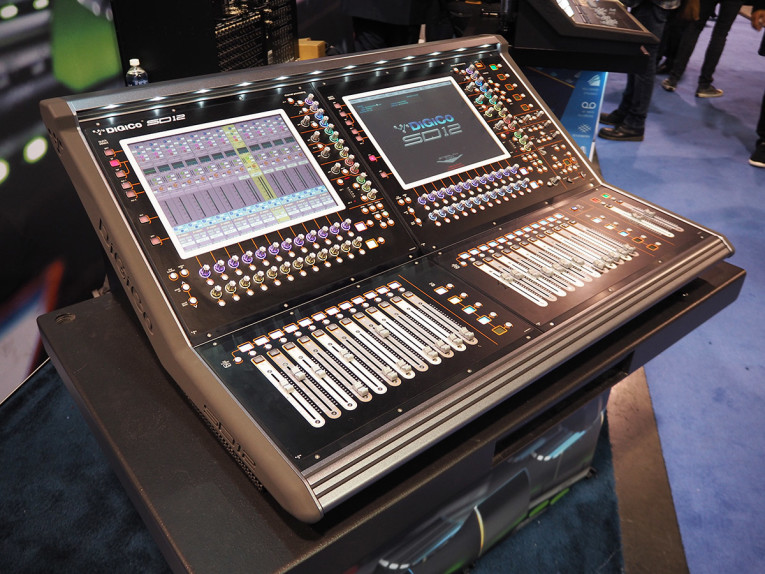

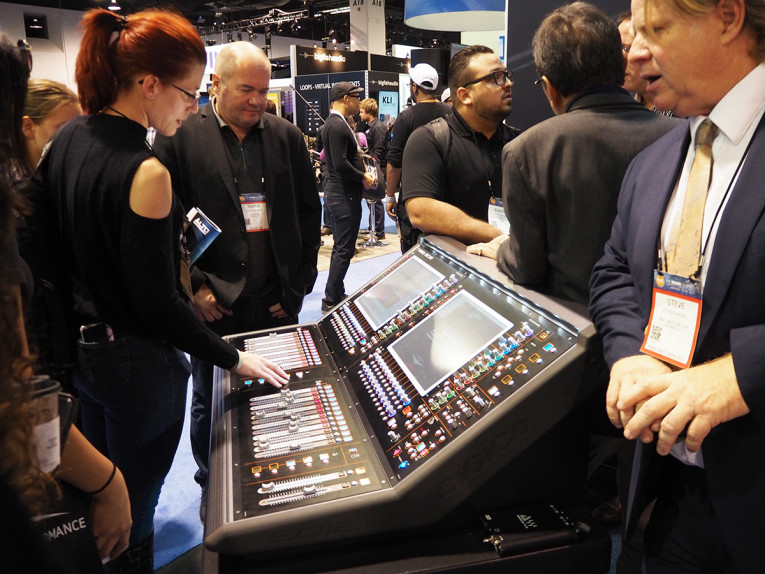

During NAMM 2017, in Anaheim, CA, British company DiGiCo had a somewhat understated presence, back to back with its strategic technology partner Waves and the joint-development company DiGiGrid. Still, everything was new in the booth, starting with the SD7 Quantum 7 Stealth Core 2 upgraded console, followed by the S31, basically an S21 with 31 faders, and three 10" multi-touch screens. The main highlight at the DiGiCo booth was the worldwide launch of the new SD12, affordable, multi-application digital console.


In 2017, DiGiCo celebrates 15 years of manufacturing exceptional digital mixing consoles. The company has enjoyed phenomenal success, with the D5 Live establishing both the company and the concept of digital mixing. The SD Series followed, delivering a powerful new way of working, with the flagship SD7 becoming the market leader. In 2015, it launched the affordable S Series with a new, modern workflow. In 2016, it introduced Stealth Core 2 software, which multiplied the power of the SD range of consoles exponentially. Now, at the very beginning of 2017, it has unveiled Project Vulcan, the new SD12.

As the company states, the SD12 is the culmination of everything that DiGiCo has learned over the last decade and a half and encapsulates the best features of both the SD and S Series. Utilizing the latest generation of Super FPGA, it is compact in size, but delivers the power and capability that is now synonymous with DiGiCo consoles.


The SD12 features 72 input channels with full processing, 36 aux/group busses with full processing, a 12 x 8 matrix with full processing, LR/LCR buss with full processing, 12 stereo FX units, 16 Graphic EQs, 119 Dynamic EQs, 119 multiband compressors and 119 DiGi-TuBes, 12 Control Groups (VCA) and SD Series Stealth Core 2 software, making it compatible with all other SD Series sessions.

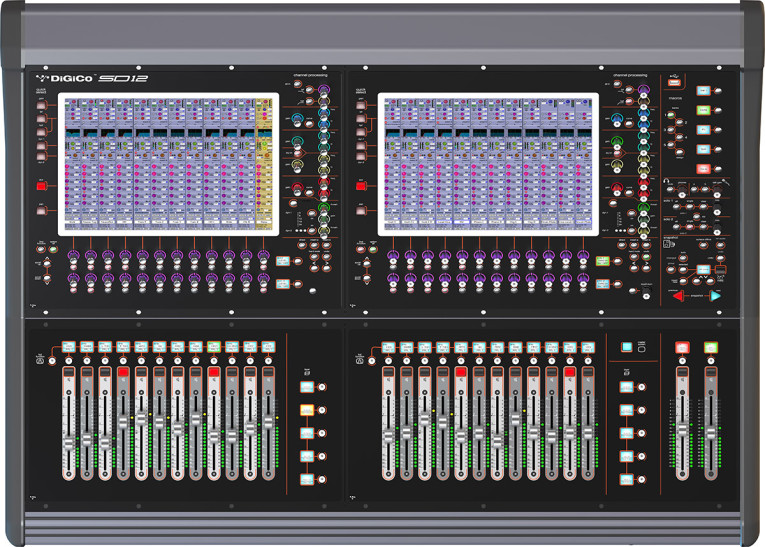

One of the SD12’s outstanding features is its dual 15-inch digital touchscreens – previously only seen on the SD7 and SD5 - which provide 24 channels in one view, dual operator mode and the ability for the right-hand screen to be the Master, as well as advanced connectivity via optional DMI cards, yet the SD12 still maintains a workflow that will be familiar to anyone working in live touring, corporate, installation, House of Worship, theatre or broadcast.

EQ and dynamics controls are aligned perfectly next to both the left and right-hand screens, so that they sit adjacent to the graphic representation that the user sees when assigning an EQ. Unusually for a console this compact, DiGiCo has included its famous Hidden Til Lit (HTL) technology, with two banks of 24 encoders featuring an RGB HTL ring, as well as an SD7-style channel strip with HTL EQ encoders. There is also new Dynamics metering on the channel strip and new high intensity meters associated with the faders. The rotaries that sit below the screen indicate, by color, what parameters they are controlling to allow for fast operation; these are also HTL.

One of the other important things with a digital console is the feedback of the metering. The Dynamics controls are exactly where we would expect them to be, but with the addition of Gain reduction meters normally only seen on the SD7 and SD5 and metering to show the action of the Gates making the feedback from the work-surface, unrivaled at its price point.

There is also an assignable Master section on the bottom right hand side of the work-surface, again only previously seen on an SD7 or SD5, and two assignable faders with their own displays and metering, which can be assigned to be any of the channels whether input or output, or Solo Master controls. Dedicated RGB scribble strips, of which there are five, can be assigned to Macros with five banks giving a total of 25 Macros, and there is a Snapshot panel for quickly accessing and controlling the Snapshots list, as well as for firing the next and previous Snapshot.

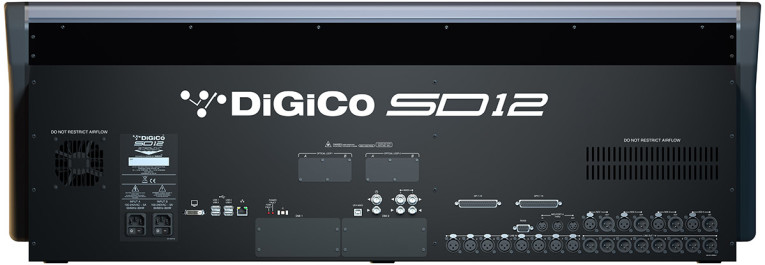

On the back of the console is a standard local I/O format. There are eight local mic/line inputs, eight local line outputs and eight AES/EBU in/out for local digital sources, as well as two MADI ports, plus a UB MADI connection for recording at 48kHz; 48 tracks of recording are possible with the console clocking at 48kHz and 24 tracks if it is clocking at 96kHz.

There are two slots for DMI cards. Options include a Dante module, which can be plugged straight into the back of the console, alleviating the need to purchase an Orange Box. A Waves module can also be fitted to take full advantage of the SoundGrid platform. In fact, there is a huge family of DMI cards that can be plugged in the SD12, which can be changed between different projects or tours, depending on requirements.

Adding to its already considerable benefits, the SD12 has a suite of remote control options, including the iPad SD remote app which offers remote control, expansion and show control. Offline software, meanwhile, allows for session preparation and online remote. There are OSC and Ross network protocols; 16 pin GPIO that allows for audio follows video and show control; Serial/MIDI in/out for MMC/MTC, MIDI remote and QLab; second console mirroring and redundancy.


And, because the SD12 is an SD Series product, there is also the option to upgrade straight into the Optocore network with not one, but two loop options, allowing the SD12 to sit happily anywhere on a loop with any other Optocore enabled SD product.

“The SD12 has already created an international impact, with over 30 of our distributors taking part in a surprise global launch, details to follow shortly,” says DiGiCo MD James Gordon. “The SD12 takes all the true DiGiCo values and installs them into a compact, cost effective surface with unrivaled feedback and control. It is ideal for operators that demand the best audio quality, combined with an intuitive and fast multi-screen worksurface.”
www.digico.org
