Nordic Semiconductor-Powered Bluetooth Low Energy Remote Module Provides High Quality Audio Streaming Solution for OEMs

September 7 2017, 02:50

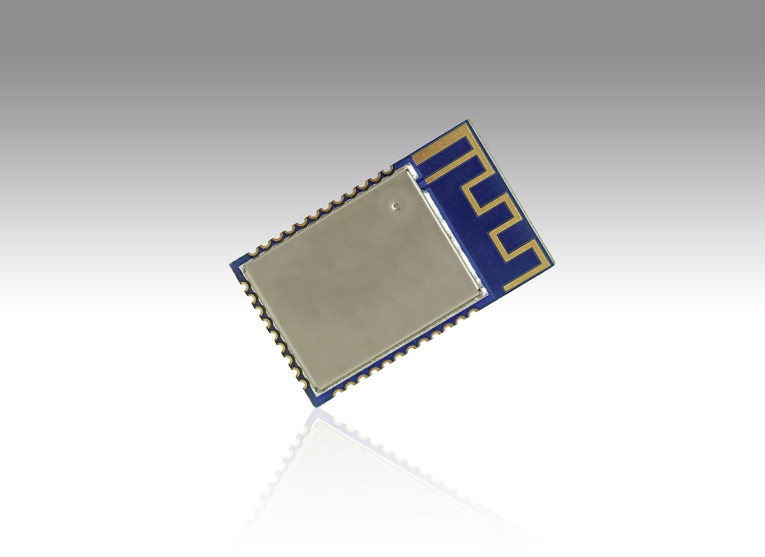

Nordic Semiconductor announced that Shanghai, China-based RFsen has selected Nordic’s Bluetooth 5-compatible low energy nRF52832 System-on-Chip (SoC) for its ‘BT5 Bi-Direction Audio Remote Module’. The module allows OEM manufacturers to provide bi-directional wireless audio streaming between, for example, a smart TV, set-top box, sound box or sound bar, and a user’s Bluetooth 4.0 (and later) Android smartphone or tablet.


Once paired, the module allows remote audio streaming between the audio equipment and the user’s mobile device, enabling playback via wired or wireless headphones connected to the device, and ensuring the audio does not disturb anyone else in the room where the audio equipment is in operation.

Thanks to the Nordic nRF52832 SoC’s support for Bluetooth 5’s 2 Mbps physical layer (PHY), RFsen’s module can support high-bandwidth audio streaming via Bluetooth low energy, offering a 48KHz audio sampling rate (superior to CD quality) with much lower power consumption than Bluetooth audio solutions based on Bluetooth Basic Rate/Enhanced Data Rate (BR/EDR) technology.

Nordic’s nRF52832 Bluetooth low energy SoC, a member of Nordic’s sixth generation of ultra low power (ULP) wireless connectivity solutions, combines an ARM M4F processor with a 2.4GHz multiprotocol radio (supporting Bluetooth 5, ANT, and proprietary 2.4GHz RF software) featuring -96dB RX sensitivity, with 512kB Flash memory and 64kB RAM. When launched, the SoC was the world’s highest performance single-chip Bluetooth low energy solution, delivering up to 60 percent more generic processing power, offering 10 times the Floating Point performance and twice the DSP performance compared to competing solutions.

“The most important hardware features that convinced us to use Nordic’s nRF52832 SoC were the ARM M4F core and its memory resources,” says Neil Niu, RFsen Co-founder. “The fact that Nordic’s Bluetooth 5 stack was very stable was another key reason for the decision, combined with good and timely technical support from Nordic engineers.”
www.nordicsemi.com | www.rfsen.com
